Refurbished Baxter Sigma Spectrum Infusion IV Pump Software 6.02
In stock
$997.00
Fully Refurbished
1-Year Warranty
Biomed Tested & Calibrated
Complete Working System
- Compact single-channel volumetric smart infusion pump • Operating Software v6.02
- 0.5–999 mL/h • Master Drug Library Version 6 with Drug Error Prevention (DEP)
- Primary and secondary infusion • Multi-Step • Cyclic TPN • optional wireless drug-library connectivity

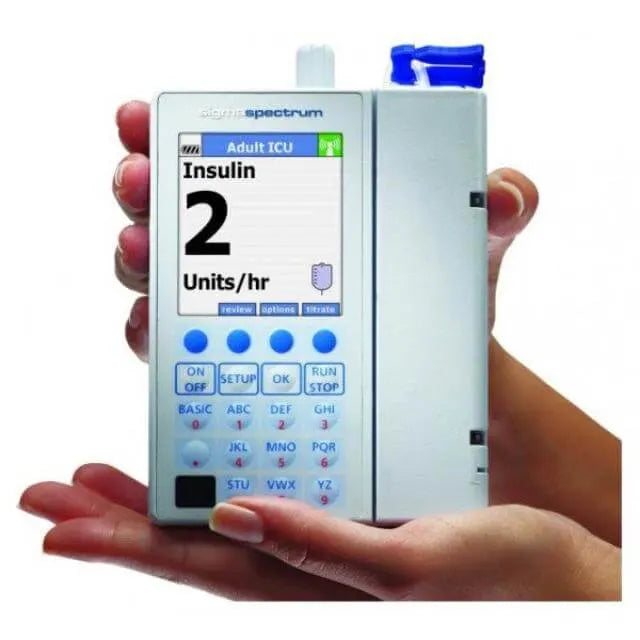

Refurbished Baxter SIGMA Spectrum Infusion IV Pump Software 6.02
Refurbished • 1-Year Warranty • Single-channel smart volumetric infusion pump with Master Drug Library and Drug Error Prevention safeguards
The Baxter SIGMA Spectrum Infusion Pump with Software v6.02 is a compact single-channel volumetric smart pump designed for controlled administration of intravenous fluids and medication therapies. The Gen 2 platform combines guided programming with a facility-configurable Master Drug Library and Drug Error Prevention system to support standardized infusion parameters and medication-safety workflows.
What’s Included
- 1× Baxter SIGMA Spectrum Infusion Pump with Operating Software v6.02
Product Description
Fully refurbished, biomed tested and calibrated by United Infusion, and backed by a 1-year warranty, the SIGMA Spectrum combines a linear-peristaltic pumping mechanism with a compact color-display interface and guided programming.
Operating Software v6.02 is part of the SIGMA Spectrum V6 / Gen 2 platform and is designed for use with the Version 6 Master Drug Library platform. Facility-controlled drug-library entries can define care areas, concentrations, dosing modes, starting dose rates, soft and hard limits, bolus parameters, VTBI limits, and other medication-programming parameters.
Units equipped with a compatible Wireless Battery Module can connect to a configured wireless network for drug-library deployment and supported network functions. Wireless capability depends on the battery/module and hardware configuration installed on the individual pump and should not be assumed to be present on every unit.
- Single-channel volumetric infusion pump
- Operating Software Version 6.02
- Version 6 Master Drug Library platform with Drug Error Prevention (DEP)
- Flow-rate range of 0.5–999 mL/h
- Primary and secondary infusion programming
- Automatic transition back to the primary infusion after normal secondary completion
- Configurable Secondary Callback functionality through the Master Drug Library
- Multi-Step and Cyclic TPN infusion modes
- Loading Dose and Bolus programming
- Facility-configurable drug limits and care areas
- Color display with guided programming and on-board help
- Adjustable downstream occlusion-pressure settings
- Dual-beam ultrasonic air-in-line detection
- Set-based anti-free-flow protection using the IV-set slide clamp
- Optional wireless network connectivity with compatible Wireless Battery Module
- IrDA communication and external RS-232 support for applicable service/software functions
Specifications — Baxter SIGMA Spectrum Software 6.02
| Manufacturer | Baxter Healthcare / SIGMA |
| Product | SIGMA Spectrum Infusion Pump with Master Drug Library |
| Pump Platform | SIGMA Spectrum V6 / Gen 2 |
| Applicable Pump P/N | 35700BAX |
| Operating Software | Version 6.02 |
| Master Drug Library | Version 6 platform; individual MDL revision may vary by pump/facility configuration |
| Type | Single-channel volumetric smart infusion pump |
| Pumping Mechanism | Linear peristaltic |
| Intended Fluids | Intravenous fluids including pharmaceutical drugs, blood, blood products, and mixtures required for patient therapy when used according to manufacturer instructions |
| Delivery Routes | Intravenous, arterial, subcutaneous, intrathecal, epidural, and irrigation of fluid spaces when clinically appropriate and used according to manufacturer instructions |
| Flow Rate | 0.5–999 mL/h |
| Flow Rate Increments | 0.1 mL/h from 0.5–99.9 mL/h • 1 mL/h from 100–999 mL/h |
| Volumetric Accuracy — Baxter Sets | ±0.1 mL/h from 0.5–1.9 mL/h • ±5% from 2–999 mL/h under manufacturer-specified test conditions |
| Total Drug Delivered | 0.1–9999 mL; 0.1 mL increments through 99.9 mL and 1 mL increments from 100–9999 mL |
| Infusion Modes | Continuous Primary and Secondary, Multi-Step, and Cyclic TPN. Drug Amount/Time requires a compatible Master Drug Library Version 6.3.0 or later and should not be assumed to be available on every Software v6.02 configuration. Loading Dose and Bolus functions are supported, with drug-library behavior dependent on configuration. |
| KVO | Uses the Master Drug Library drug-configured KVO rate, with a default of 1 mL/h if not configured, or the programmed infusion rate, whichever is lower |
| Secondary Completion | Normally transitions automatically back to the primary infusion when the secondary infusion completes |
| Secondary Callback | When enabled through the Master Drug Library and selected for the infusion, the pump drops to KVO at 1 mL/h or the current infusion rate, whichever is less, and sounds an audio callback alarm after secondary completion |
| Master Drug Library / DEP | Facility-configurable Master Drug Library supports care areas, concentrations, dose modes, starting rates, soft and hard limits, bolus parameters, VTBI parameters, and related Drug Error Prevention controls |
| Air-in-Line Detection | Dual-beam ultrasonic detector; detects larger air bubbles and accumulated air according to manufacturer-defined thresholds |
| Downstream Occlusion | Adjustable Low 6 ±4 PSI • Medium 13 ±6 PSI • High 19 ±9 PSI |
| Maximum Pump Pressure | 28 PSI |
| Anti-Free-Flow System | Set-based protection utilizing the IV administration-set slide clamp |
| Standard IV Sets | Compatible standard gravity IV sets as specified for the pump; manufacturer documentation lists compatible Baxter and Hospira sets, with pump calibration and set-specific requirements applying |
| Display | Color HRTFT display • 240 × 270 resolution • LED front-lit |
| Standard-Battery Dimensions | 5.8″ H × 4.2″ W × 2.5″ D without pole clamp • 5.8″ H × 6.4″ W × 4.7″ D with pole clamp |
| Wireless-Battery Dimensions | 6.3″ H × 4.2″ W × 2.5″ D without pole clamp • 6.3″ H × 6.4″ W × 4.7″ D with pole clamp |
| Standard-Battery Weight | 25.5 oz ±1 oz without pole clamp • 33.5 oz ±1 oz with pole clamp |
| Wireless-Battery Weight | 26.5 oz ±1 oz without pole clamp • 34.5 oz ±1 oz with pole clamp |
| Standard Battery | Rechargeable Lithium-Ion • 1800 mAh • 7.4 VDC nominal • SIGMA P/N 35724 |
| Standard Battery Runtime | Approximately 8 hours at 125 mL/h with the highest backlight setting under manufacturer-specified conditions |
| Standard Battery Recharge | Approximately 12 hours |
| Wireless Battery Modules | Rechargeable Lithium-Ion • 1800 mAh • 7.4 V nominal • P/N 35083 for 802.11b and P/N 35162 for compatible 802.11b/g hardware |
| Wireless Battery Runtime | Approximately 4 hours at 125 mL/h with the highest backlight setting under manufacturer-specified conditions |
| Wireless Battery Recharge | Approximately 16 hours |
| Wireless Connectivity | Optional and dependent on installed Wireless Battery Module and pump hardware; Gen 2 documentation supports IEEE 802.11b and compatible 802.11b/g configurations |
| Drug Library Transfer | Wireless network transfer when equipped with a compatible Wireless Battery Module; direct IrDA transfer is also supported |
| External Interfaces | IrDA; asynchronous serial expansion interface; software upgrades may be performed through external RS-232 |
| AC Adapter Input | 100–240 VAC • 50–60 Hz • 200 mA |
| AC Adapter — v6.02 Era | SIGMA P/N 35714 • 9 VDC / 800 mA output • approximately 3.0 m (9.75 ft) cord |
| Operating Conditions — Standard Battery | 60–90°F (15.6–32.2°C) • 20–90% RH noncondensing |
| Operating Conditions — Wireless Battery | 60–80°F (15.6–26.7°C) • 20–90% RH noncondensing |
| Storage Conditions | -4–120°F (-20–49°C) • 10–90% RH noncondensing |
| Electrical Classification | Class II equipment • Type BF applied part • Continuous operation |
| Standards | Medical electrical equipment standards applicable to the SIGMA Spectrum platform; interface and wireless standards depend on installed configuration |
| Configuration | Master Drug Library revision and content, care areas, dose limits, Amount/Time availability, Secondary Callback, bolus functions, wireless capability, alarm configuration, infusion options, and other functions may vary according to the individual pump and facility configuration |
| Condition | Refurbished |
| Warranty | 1-Year United Infusion warranty |
Product Manuals
United Infusion currently hosts the SIGMA Spectrum Gen 2 Operator’s Manual for Software v6.05 and a Quick Start Guide. The v6.05 manual covers the same 35700BAX Gen 2 / V6 pump platform, but software-screen navigation, terminology, Master Drug Library behavior, and some programming functions differ from Software v6.02.
SIGMA Spectrum Gen 2 — Operator’s Manual, Software v6.05
Download PDF
SIGMA Spectrum — Quick Start Guide
Download PDF
